AI Lens (Prime 16HD, 32HD, 64HD) Installation

Prime 16HD

Step 1: Identify the lens marking

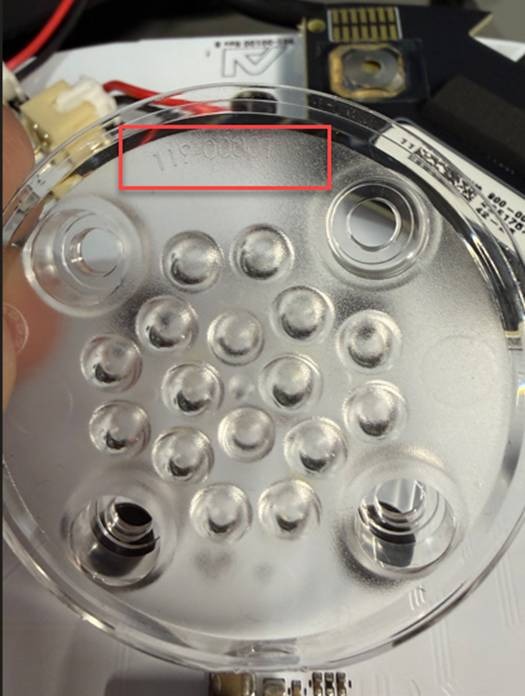

• Locate the lens part number: 119-00001


Step 2: Correct orientation

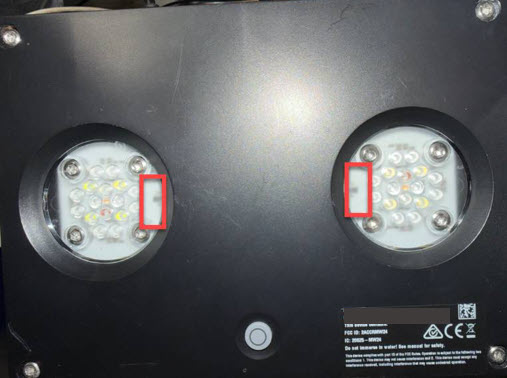

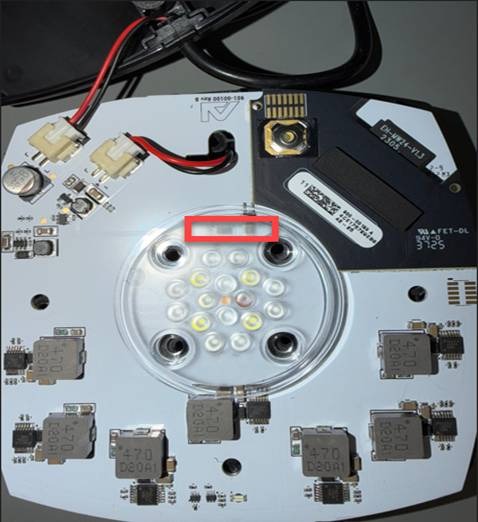

• Install the lens so the part number faces toward the button side of the fixture (Prime 16HD picture below).


Step 3: Verify installation

• Ensure all lenses are fully seated and evenly aligned before reassembly


Hydra 32HD and Hydra 64HD

Step 1: Identify the lens marking

• Locate the part number on the lens: 119-00001 (Hydra 32HD pictured below)


Step 2: Correct orientation

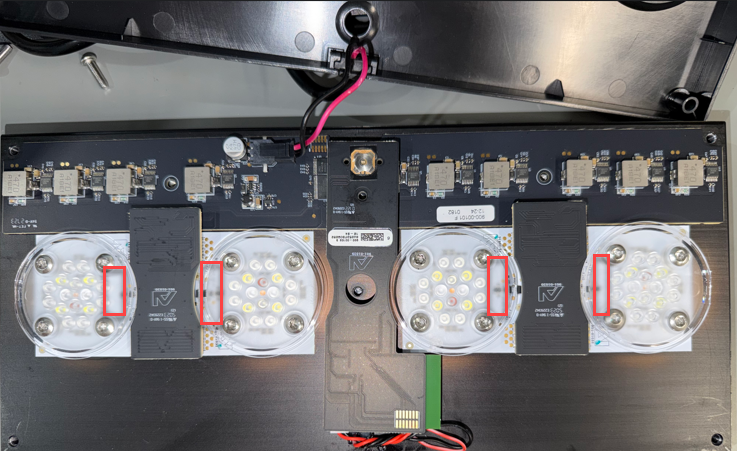

• Install the lens so the part number faces inward toward the QCA module (Hydra 32HD pictured below)



   (Hydra 64HD pictured below)


Step 3: Verify installation

• Confirm all lenses are fully seated and evenly aligned before reassembly
